Pig iron, an intermediate product in iron and steel production, is characterized by high carbon content (typically 3.5-4.5%) and is produced by smelting iron ore in blast furnace, making it brittle and unsuitable for direct applications, but used as feedstock for further processing.

Application

• Feedstock for Steel Production: Pig iron serves as a raw material for producing various types of steel and cast iron.
• Further Processing: Pig iron is further refined in basic oxygen furnaces (BOFs), electric arc furnaces (EAFs), or cupola furnaces to produce steel or cast iron with desired properties.

Direct reduced iron (DRI), also called sponge iron, is produced from the direct reduction of iron ore (in the form of lumps, pellets, or fines) into iron by a reducing gas which contains elemental carbon (produced from natural gas or coal) and/or hydrogen. Many ores are suitable for direct reduction. Direct reduction refers to solid-state processes which reduce iron oxides to metallic iron at temperatures below the melting point of iron. Reduced iron derives its name from these processes.

The iron ore pelletizing process transforms fine iron ore concentrate into spherical pellets through a series of steps including mixing with binders, forming, and heating, resulting in a product suitable for blast furnaces and direct reduction plants.

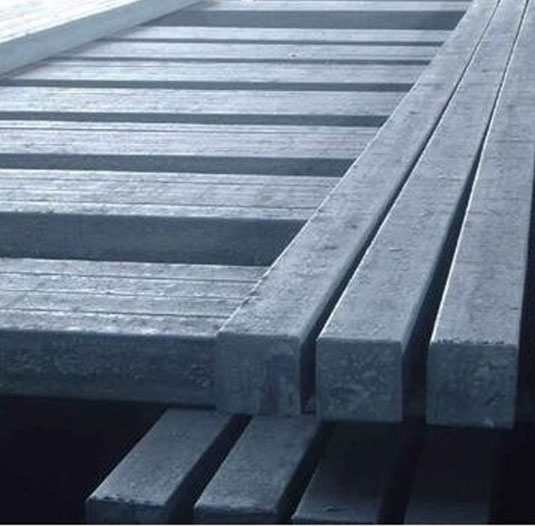

Alloy Steel Billets & Blooms are manufactured with state-of-the-art technologies like Electric Arc Furnace (EAF), Ladle Refining Furnace (LRF), Vacuum Degasser (VD), Flying Tundish, Level-2 Automation, and Continuous Casting Machine in fully equipped Steel Melt Shops. It demonstrates an improved trend in yield, efficiency (tap-to-tap time), and a reduction in flux and oxygen consumption. Consistent quality Billets with strict adherence to chemical composition standards, which is crucial for high tensile strength, durability, ductility, corrosion resistance, and weldability, make them suitable for varied applications, including Automotive Parts, Heavy Machinery, Construction, Transmission Line Towers, and Flanges.

Grades & Sizes(mm)

• E250, E30BR, HT, E250C, E350C 130x130, 160x160
• Any Grades 130x130,160x160,250x250 and 340x400
• SA105, ASTM350LF2 340X400 and 250X50
• C45 130x130
• 28smnv5 130x130

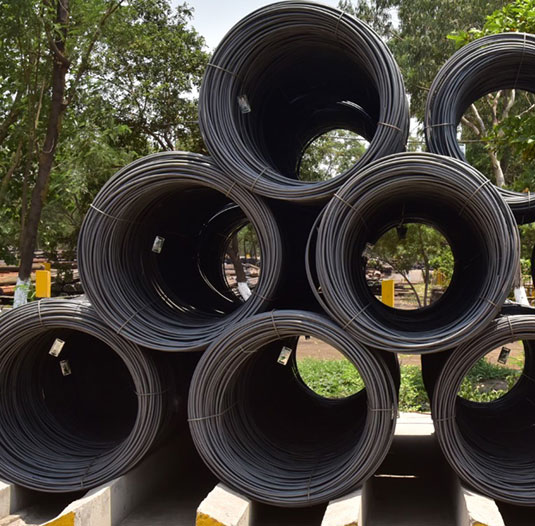

Offers premium wire rods with exceptional reduction ratios and mechanical properties. The products are suitable for various applications, including automotive components.

Sizes
5.5 mm to 32.0 mm

Application

• Our high-quality material is integral to all end use products, ensuring exceptional quality and performance across the board.

Grades

• Carbon Steel SAE 1010 to SAE 1090, SWRH 42A to SWRH 82A & B, C15 to C70, EN8, En8D
• Alloy Steel (Case Carburising) 15CR3, 16MNCR5, 19/20MNCR5, EN352, EN353, EN355, EN36C, SAE8615 to SAE8650, SCM415, SCM420 etc.
• Alloy Steel (Case Carburising) 31CRV3, 34CR4, 40CR4, 41CR4, 42CRMO4, SAE4140, SAE1541, SAE5140, En18, En19, En24, SCM435 etc.
• Cold Headed Quality 10B21 to 10B38, 15B25 to 15B41, 19MNB4M, 23MNB4M etc.
• Electrode Steel Ea2, EB2, EH10K, EH12K, EM12, EWNR, WR3, WR3M, ER70SG to ER90SG etc.
• Free Cutting Steel EN1A, EN8M, EN15AM, SAE1141 etc.
• Spring Steel 50CRV4, 51CrMoV4, 52CR4MO2V, 52CRMOV4, 55SI7, En45, SAE9254, SUP6, SUP7, SUP9/9A, SUP11/11A, 60SI7 etc.
• Bearing Steel & File Steel En31, SAE 52100, SUJ3, 100Cr6, 125Cr3, File Steel etc.
• Micro Alloy Steel C70S6, 38MnSiV6, 30Mn5, SMN443, C50CVM, 11V41 etc.

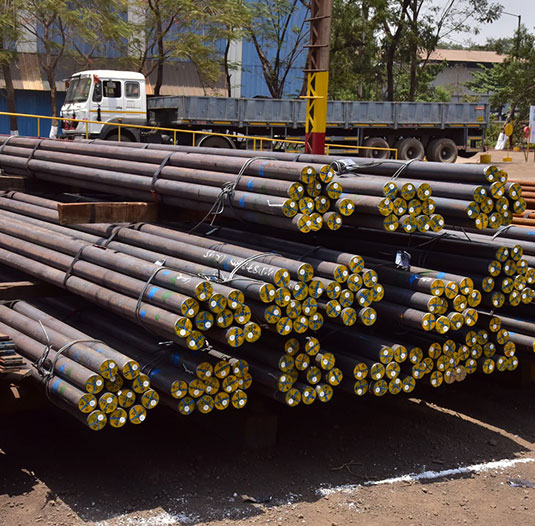

Our advanced manufacturing technology enables the production of high-quality bars in various shapes, including rounds, flats, and round-cornered square bars, with precise dimensional accuracy. This ensures a superior product mix that meets diverse customer requirements while maintaining consistency and compliance with industry standards.

Grades

• Carbon Steel SAE 1010 to SAE 1090, SWRH 42A to SWRH 82A & B, C15 to C70, EN8, En8D
• Alloy Steel (Case Carburising) 15CR3, 16MNCR5, 19/20MNCR5, EN352, EN353, EN355, EN36C, SAE8615 to SAE8650, SCM415, SCM420 etc.
• Alloy Steel (Case Carburising) 31CRV3, 34CR4, 40CR4, 41CR4, 42CRMO4, SAE4140, SAE1541, SAE5140, En18, En19, En24, SCM435 etc.
• Cold Headed Quality 10B21 to 10B38, 15B25 to 15B41, 19MNB4M, 23MNB4M etc.
• Electrode Steel Ea2, EB2, EH10K, EH12K, EM12, EWNR, WR3, WR3M, ER70SG to ER90SG etc.
• Free Cutting Steel EN1A, EN8M, EN15AM, SAE1141 etc.
• Spring Steel 50CRV4, 51CrMoV4, 52CR4MO2V, 52CRMOV4, 55SI7, En45, SAE9254, SUP6, SUP7, SUP9/9A, SUP11/11A, 60SI7 etc.
• Bearing Steel & File Steel En31, SAE 52100, SUJ3, 100Cr6, 125Cr3, File Steel etc.
• Micro Alloy Steel C70S6, 38MnSiV6, 30Mn5, SMN443, C50CVM, 11V41 etc.
• Type & Sizes
• Round Bars 23.0 mm to 200.0 mm
• Round Corner Square Bars 55.0 mm to 200.0 mm
• Flats 60.0 mm to 100.0 mm width & 7.0 mm to 28.0 mm thickness

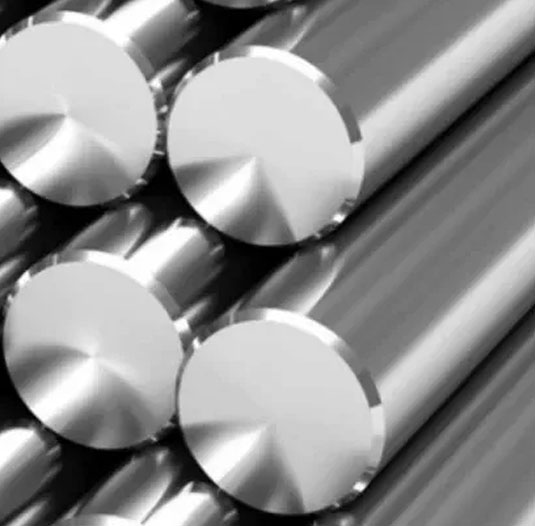

Engaged in the manufacturing of value-added bright bars that meet the rising demand in the automotive and engineering sectors. The mill houses advanced testing facilities, ensuring precision and performance.

Sizes
5.0 mm to 80.0 mm

Grades

• Carbon Steel SAE 1010 to SAE 1090, SWRH 42A to SWRH 82A & B, C15 to C70, EN8, En8D
• Alloy Steel (Case Carburising) 15CR3, 16MNCR5, 19/20MNCR5, EN352, EN353, EN355, EN36C, SAE8615 to SAE8650, SCM415, SCM420 etc.
• Alloy Steel (Case Carburising) 31CRV3, 34CR4, 40CR4, 41CR4, 42CRMO4, SAE4140, SAE1541, SAE5140, En18, En19, En24, SCM435 etc.
• Cold Headed Quality 10B21 to 10B38, 15B25 to 15B41, 19MNB4M, 23MNB4M etc.
• Electrode Steel Ea2, EB2, EH10K, EH12K, EM12, EWNR, WR3, WR3M, ER70SG to ER90SG etc.
• Free Cutting Steel EN1A, EN8M, EN15AM, SAE1141 etc.
• Spring Steel 50CRV4, 51CrMoV4, 52CR4MO2V, 52CRMOV4, 55SI7, En45, SAE9254, SUP6, SUP7, SUP9/9A, SUP11/11A, 60SI7 etc.
• Bearing Steel & File Steel En31, SAE 52100, SUJ3, 100Cr6, 125Cr3, File Steel etc.
• Micro Alloy Steel C70S6, 38MnSiV6, 30Mn5, SMN443, C50CVM, 11V41 etc.

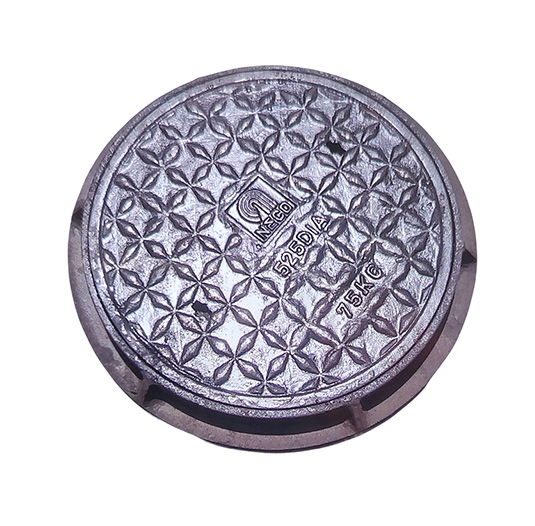

Cast Iron Manhole Covers, Frames, and Gratings

Cast Iron products are heavy and ensures rigidity, longevity and Good Crushing Strength with higher sectional thickness.

Type & Specification

• Material Cast Iron as per IS 210 (FG 150 Grade)
• Load Bearing Capacity LD - 2.5 MT
  MD - 10 MT
  HD - 20 MT
  EHD - 35 MT
• Shapes Square cover & Square frame
  Rectangular cover & Rectangular frame
  Circular cover & Square frame
  Circular cover & Circular frame
• Weight Range From 3.5 kg to 970 kg depending on type and application.
• Features High Impact Strength, Rigid, Strong and Durable, High grip, Antiskid Design.

Application

• It is used for Sewage & Storm water Drainage in Infrastructure Industry for installation within areas subjected to pedestrian and vehicular traffic. Based on load bearing capacity following are the application areas:
• Light duty Manhole covers (LD-2.5) - Suitable for use within residential and institutional complexes/areas with pedestrian but occasional light motor vehicle traffic. These covers are used for Inspection Chambers.
• Medium duty Manhole covers (MD-10) – Suitable for use in service lanes/roads, on pavements for use under medium duty vehicular traffic for car parking areas.
• Heavy duty Manhole covers (HD-20) – Suitable for use in institutional/commercial areas/carriageways/city trunk roads/bus terminals, with heavy duty vehicular traffic of wheel loads between 5 to 10 tones, like buses, trucks and parking areas and where the manhole chambers are located in between the pavement and the middle of the road.
• Extra Heavy duty Manhole covers (EHD-35) – Suitable for use on carriageways in commercial/industrial/port areas/near warehouse/godowns where frequent loading and unloading of trucks/trailers are common, with slow to fast moving vehicular traffic of the types having wheel loads up to 11.5 tonnes irrespective of the location of the manhole chambers.

Pump and Valve Body Castings

Valve body castings are essential components in fluid control systems, ensuring high durability, strength, and resistance to pressure. These castings are widely used in industries like oil & gas, water treatment, and power generation.

Application

• Oil & Gas Industry: Used in pipelines and refineries for regulating fluid flow under high pressure.
• Water Treatment Plants: Ensures controlled water distribution and filtration.
• Power Plants: Facilitates steam and water flow control in thermal and nuclear plants.
• Automobile Industry: Integral in hydraulic and pneumatic systems.
• Chemical Industry: Handles corrosive and high-temperature fluids safely.

Slag pot

Heat-resistant containers designed to collect and transport molten slag in metalworking processes, built to withstand extreme temperatures and heavy-duty operations.

Application

• Steel Plants & Foundries – Used for slag collection during metal smelting.
• Metal Recycling Units – Helps in recycling waste slag for secondary use.
• Industrial Furnaces – Used in high-temperature waste management.

Heavy Ingot Mould

Sturdy moulds used in metal casting to shape molten metal into solid ingots. Known for their heat resistance and precise formation capabilities.

Application

• Ingot Moulds are used for making Ingots having applications in Rolled Products, Construction Industries, Forging Industries, Automobile Industries, Defence Equipments etc.

Mould Assembly with Trumpet

Mould assemblies with trumpets are crucial in the casting process, ensuring smooth molten metal flow into mould cavities. The trumpet design minimizes turbulence, reducing defects and ensuring high-quality castings in iron and steel production.

Application

• Used for making ingots with consistent molten metal flows by maintaining ferro static pressure.
• Trumpets and bottom plates are support items for making steel ingots.

Duplex Ingot Moulds

Duplex ingot moulds: Industrial metal casting components, typically made from cast iron, featuring dual compartments to enable simultaneous casting of two ingots, enhancing productivity and efficiency.

Application

• Steel and Metal Casting: Used in foundries for efficient casting of metal ingots.
• Manufacturing Industries: Essential for high-volume metal production.
• Automobile and Heavy Machinery: Used in producing raw materials for automotive and machinery components.
• Aerospace and Defense: Supports the casting of specialized metal alloys.
• Recycling Industry: Helps in remelting and reshaping scrap metal into new ingots.

Counter Weights

Material handling Counterweights provide balance and stability to a mechanical system, counterbalance loads, making lifting or moving objects easier. Used in various applications like elevators, cranes, heavy machinery, etc., ensuring safe and energy-efficient operation.

Application

• Elevators and Lifts: Provides balance to ensure smooth operation.
• Cranes and Hoists: Helps stabilize heavy lifting equipment.
• Heavy Machinery (Excavators, Loaders, etc.): Improves stability and prevents tipping.
• Construction Equipment: Used in tower cranes and other large construction machinery.
• Marine and Shipbuilding: Helps balance ships and offshore equipment.

Ductile iron castings

Ductile iron castings are widely used in automotive, construction, and industrial applications due to their superior strength, impact resistance, and flexibility. They provide enhanced mechanical properties compared to traditional cast iron, ensuring long service life in heavy-duty environments.

Application

• Automotive Industry – Used in engine parts, brackets, and axle components.
• Construction Machinery – Supports structural frameworks, gears, and hydraulic components.
• Industrial Equipment – Ideal for pumps, compressors, and bearing housings.
• Pipeline Systems – Used in valves, pipe fittings, and pressure equipment.

Carrier housing

Carrier housings are critical components in automotive and industrial gear systems, ensuring the smooth operation of differentials, transmissions, and powertrains. These housings provide a rigid structure to support moving parts and reduce wear and tear.

Application

• Automotive Differentials – Used in trucks, buses, and off-road vehicles.
• Industrial Gear Systems – Provides housing for heavy-duty power transmissions.
• Construction Machinery – Ensures stability in high-torque environments.
• Agricultural Equipment – Used in tractors and harvesting machinery.

Axle end cap and Backing ring

Axle end caps and backing rings are protective components used in axle assemblies, piping systems, and flange connections. They prevent dust, debris, and fluid leakage, ensuring structural stability and sealing efficiency in various applications.

Application

• Automotive Industry – Used in trucks, buses, and commercial vehicles to protect axles.
• Railway Components – Ensures long-lasting axle performance.
• Heavy Machinery – Provides structural reinforcement in industrial machines.
• Pipeline & Fluid Transport – Helps in flange sealing and preventing leaks in piping systems.

Differential Housing

A robust casing that protects the differential gears in vehicles, ensuring proper alignment and safeguarding against external damage while supporting smooth and efficient power transmission.

Application

• Automotive Industry – Used in cars, trucks, and off-road vehicles.
• Agricultural Machinery – Essential for tractors and farming equipment.
• Construction Vehicles – Used in excavators and dump trucks.

Clutch housing

A durable enclosure that secures and protects the clutch assembly, maintaining precise alignment and shielding the internal components from dust, debris, and external impact.

Application

• Automotive Industry – Used in cars, trucks, and commercial vehicles.
• Heavy-Duty Machinery – Essential for industrial power transmissions.
• Agricultural Equipment – Ensures smooth operation of tractors and harvesting machines.

Axle Housings

A critical component that supports and connects a vehicle’s wheels, enabling load-bearing and smooth rotation while maintaining stability and power transfer from the drivetrain.

Application

• Automotive Industry – Used in passenger cars, trucks, and SUVs.
• Heavy-Duty Vehicles – Essential for buses, trailers, and commercial vehicles.
• Agricultural & Construction Machinery – Supports tractors, loaders, and excavators.

Cylinder Head

A vital engine component that seals the top of the engine block, housing intake and exhaust valves, and ensuring efficient combustion and proper engine performance.

Application

• Automotive Industry – Used in cars, trucks, and motorcycles.
• Industrial Engines – Essential for generators and heavy machinery.
• Agricultural Equipment – Used in tractors and farm vehicles.

Gear box housing

A sturdy casing that encloses and protects the gearbox’s internal components, ensuring proper alignment, reducing vibration, and safeguarding gears from environmental wear and tear.

Application

• Automotive Industry – Used in cars, trucks, and heavy vehicles.
• Industrial Machinery – Essential for gear-driven systems in factories.
• Construction Equipment – Used in excavators, loaders, and forklifts.

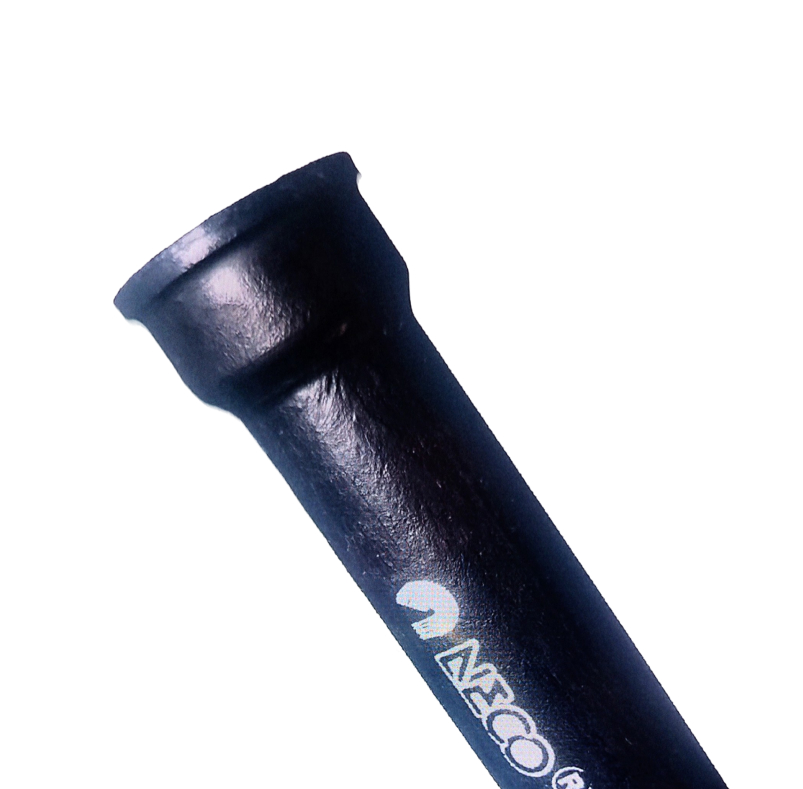

Centrifugally Cast CI Spigot & Socket pipes & Fittings (IS-3989)

These are traditional components of drainage systems designed to dispose soil, waste, ventilation and rainwater safely. Made from durable & Strong materials like Cast Iron, they ensure leak-proof connections and long-term performance. Their smooth surface prevent clogging and promote efficient flow.

Type & Specification

• Types Hub (Spigot & Socket) pipes, fittings.
• Material Cast iron Grade FG 150 (min.) (as per IS 210)
• Nominal sizes (DN) 50 DN, 75 DN, 100 DN, 150 DN, 200 DN, 250 DN, 300 DN, 400 DN.
• Coating Black Bitumen (Inside & Outside) Coating Thickness 70 µm.
• Hydrostatic Pressure Test 0.07 MPa for 15 sec.
• Mechanical Strength Tensile Strength 150 N/mm² (min.),
  Hardness 230 BHN max.
• Temperature Resistance Up to 400 Deg. C
• Ring Crush Strength 300 N/mm² (min.)
• Joint Type Lead or Joint Sealant

Application

• It is used in Building drainage system for soil, waste, ventilation and rainwater purpose in Building Construction Industry.

Centrifugally Cast CI Hubless Pipes & Fittings (IS-15905)

Manufactured using centrifugal casting, these pipes offer exceptional strength and uniformity. Hubless design simplifies easy installation, eliminating the need for traditional hub-and-spigot joining, it is done with SS 304 Coupling and widely used in building drainage. This is strong, durable, fireproof and low noise system (24 dba @ 2 L/Sec.)

Type & Specification

• Types Hubless (Plain End) pipes, fittings and couplings.
• Material Cast iron Grade FG 150 (min.) (as per IS 210)
• Nominal Sizes (DN) 50 DN, 75 DN, 100 DN, 150 DN, 200 DN, 250 DN, 300 DN, 400 DN.
• Coating Epoxy Coating (Inside & Outside) Coating Thickness 70 µm.
• Hydrostatic Pressure Test 0.07 MPa for 15 sec.
• Mechanical Strength Tensile Strength 150 N/mm² (min.), Hardness 230 BHN max.
• Temperature Resistance Up to 400 Deg. C
• Ring Crush Strength 300 N/mm² (min.)

Application

• It is used in Building drainage system for soil, waste, ventilation and rainwater purpose in Building Construction Industry.

Ductile Iron Manhole Covers, Frames, and Gratings

Ductile Iron Manhole Covers, frames and gratings are essential components for Sewage, Storm water in underground drainage system. They are designed for high strength, durability and resistance to wear and impact. In service condition due to backflow and water flooding it will not displace from the place.

Type & Specification

• Material Ductile iron as per IS-1865 (SG 500/7 )
• Load Bearing Capacity Class A 15 – 1.5 MT
  Class B 125 – 12.5 MT
  Class C 250 – 25.0 MT
  Class D 400 – 40.0 MT
  Class E 600 – 60.0 MT
  Class F 900 – 90.0 MT
• Shapes Square cover & Square frame
  Rectangular cover & Rectangular frame
  Circular cover & Square frame
  Circular cover & Circular frame
• Weight Range From 7 kg to 300 kg depending on type and application.
  Design as per requirement can be done based on quantity.
• Features High Impact Strength, Anti-Skid design, Hinge type Anti-theft design, Resistance to wear & Tear, Easy Handling

Application

• It is used for Sewage & Storm water Drainage in Infrastructure Industry for installation within areas subjected to pedestrian and vehicular traffic. Based on load bearing capacity following are the application areas:
• Class A 15 - Areas which can only be used by pedestrians and pedal cyclists
• Class B 125 - Footways, pedestrian areas and comparable areas, car parks or car parking decks.
• Class C 250 - For Storm water tops installed in the area of kerbside channels of roads which, when measured from the kerb edge, extends a maximum of 0,5 m into the carriageway and a maximum of 0,2 m into the footway.
• Class D 400 - Carriageways of roads (including pedestrian streets), hard Shoulders and parking areas, for all types of road vehicles.
• Class E 600 - Areas imposing high wheel loads, e.g. docks, aircraft pavements.
• Class F 900 - Areas imposing particularly high wheel loads, e.g. aircraft pavements.
